Project Description

ABSTRACT

             RADAR is an object detection system which uses Microwaves. Microwaves are nothing but the radio waves. It uses microwaves to determine the Range, Altitude and Direction or Speed of objects. This project focus at making a Radar which is efficient, cheaper and reflects all the possible techniques that a radar consists of. This paper is about Radar System controlled via Arduino. This RADAR system consists of an ultra-sonic sensor and motor, these are the major components of the system. Basic working of the system is that it have to detect objects in its defined range. Processing IDE gives graphical representation and it also gives angle or position of the object and distance of the object. This system is controlled through Arduino. Arduino UNO board is sufficed to control ultrasonic sensor and also to interface the sensor and display device. Then we can able to see the all updates in smart phone through the server .While researching, we learned about existing navigation and obstacle detection innovations and different systems where ultrasonic sensors are used efficiently. Main application of this RADAR system comes into different field of navigation, positioning, object identification, mapping, spying or tracking and different applications. These less investment system are also suitable for indoor applications.

HARDWARE REQUIREMENTS:

• Arduino UNO
• Ultrasonic Sensor
• LED
• Buzzer
• Relay Driver
• Motor
• LCD Display
• Power Supply

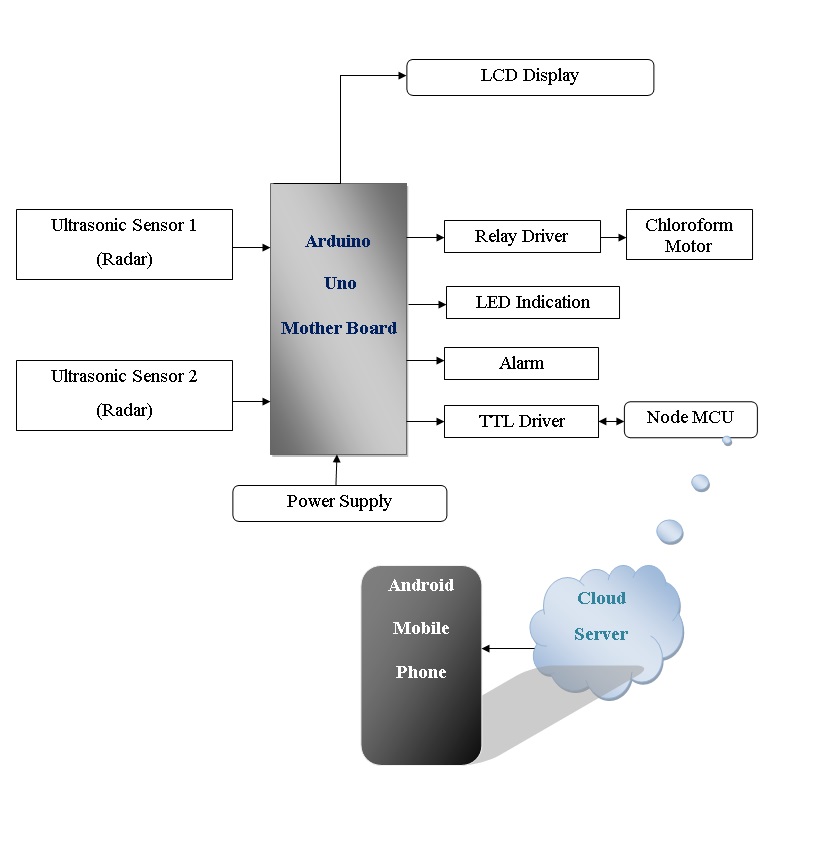

Project Block Diagram
